ODM QD Type 5t - 10t Electric Double Girder Overhead Crane with Hook

Main technical date:

Rated capacity:5t, 10t, 16/3.2t, 20/5t, 32/5t, 50/10t, 75/20t, 125/32t, 160/32t, 200/32t, 250t, 400t. Etc.

Span: 10.5m, 13.5m, 16.5m, 19.5m, 22.5m, 25.5m, 28.5m, 31.5m, 46.5m.etc.

 classification group:A5(used for not frequent work, such as eneral machinery assembly workshops)

A6(used for frequent work, such as metallurgical enterprises for auxiliary lifting)

Rated capacity is indicated by fraction,   numerator indicates rated capacity of main hook load ,   denominator  indicates  rated capacity of auxiliary hook load.

The crane made by our factory has been improved based on the original hook crane.We use new skills , new standard, new technics and develop new components. The new product with advantages of energy saving and little noise  is reasonable in construction, excellent in performance , reliable in quality and has smooth braking action and spacious operation room with a nice view.It has  high interchangeability, excellent versatility, and convenient service.

Based on the original one, the new generation has been improved .Electric motor is series Y. Operation room  and hoisting limiter  are the latest model.  Electrical control box has been optimized. The operation room and the platform is connected by stair so man can easily go up and down. The  main part uses low speed shaft .this machine completely accords with the require of   craneGB3811-83 design criterion and  crane GB6067-85 safety regulation. New components have been developed  to satisfy different users : in-line control machine, roof fan, P4cooling-air machine, T4cold and warm air heating radiator, hydraulic push-rod brake, hoist height limiter, electric -lighting set, overload limiter, communication device. The small carriage uses flat cable and the big carriage uses H type slide wire.

The new components above has improved the usage function of the crane .At the same time the production costs go up,  the  prices increase. Customers can choose products by needs.(ordering instructions are as follows )

Description:

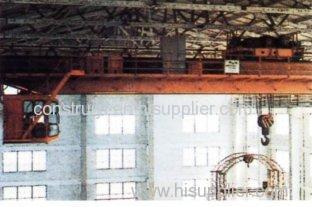

The electric overhead crane with hook functions while the large carriage moves along the length of the workshop , the small carriage moves transversely or the hook moves up and down.

It is applied to general machinery assembly workshops, the metal structure workshops, machinery maintenance workshops for carrying , and supports metallurgical enterprises for auxiliary lifting .The crane is recommendated to run at the condition that the temperature is between -20 and 40 , and relative humidity is less than 85%.

Ordering information:

1.Rated capacity, span , loading lift height must be clearly pointed .

2.Data above is the standard of indoor crane with closed operation room .There are three basic types of operation rooms : open type , close type, and type with cold and warm air heating radiator.Type of operation room , position and direction must be pointed .

3.Trackway model should be pointed

4.Components can be choose

    Series YB flat rubber cable

    H type energy-saving  slick line device

    Light device

    QCX overload limiter

    Roof fan

5.The size of crane submit of this Catalogue sheet will be changed when the related  tech data change .Notice

6.Our factory can design and manufacture various non-standard or special overhead crane according to customer special requirements .

7.The crane samples are subject to change without notice user , please keep in touch regularly with the Company.

Welcome to visit our factory and send inquiry ,I am glad to reply you immediately .Our after-sales service system ensure each end-user keeps moving always
